Official Distributor For The Xtractor™

5-minute Nucleic Acid Extractor

Xtractor™ 5-Minute Nucleic Acid Extractor is a small, portable, fully automated nucleic acid extraction device compatible with ultra-fast and conventional magnetic bead methods. It can complete DNA/RNA extraction from 1-16 respiratory samples in 5 minutes, while maintaining the sensitivity and purity performance of conventional nucleic acid extraction. In combination with the XDive™ 5-minute qPCR system, superfast qPCR assays for up to 16 samples (from sample to result) can be completed in less than 12 minutes, providing moderate sample throughput and the industry's fastest productivity. Xtractor™ can also rapidly process other typical sample types, such as blood, plasma, sputum, urine, and feces.

A blue and white Xerox stapler with a black handle on top.

Nucleic acid extraction and purification of 1-16 respiratory tract samples in 5 minutes.

❋  Rapid
❋ Flexible

Supports nucleic acid extraction from 1-16 samples per run.

❋ Small

Compact and easy to carry, it is convenient for meeting sample-processing needs in various scenarios.

A 10-minute "sample-to-result" molecular detection of 1-16 respiratory samples is possible.

❋ With XDive,

Built-in a variety of extraction programs, one-click retrieval to complete the extraction operation

❋  Convenient
❋  User friendly

Optionally, comes with single-sample tube pre-encapsulated and 16-sample wellplate pre-encapsulated extraction reagents.

Software

The software is designed for seamless and efficient operation. Integrated directly within the instrument, it features an intuitive interface for straightforward operation, allowing users to effortlessly customize extraction protocols. The software is also built to accommodate on-demand upgrades, ensuring that your system remains at the forefront of technology. For a comprehensive understanding of all the features and step-by-step guidance, users are encouraged to consult the detailed user manual.

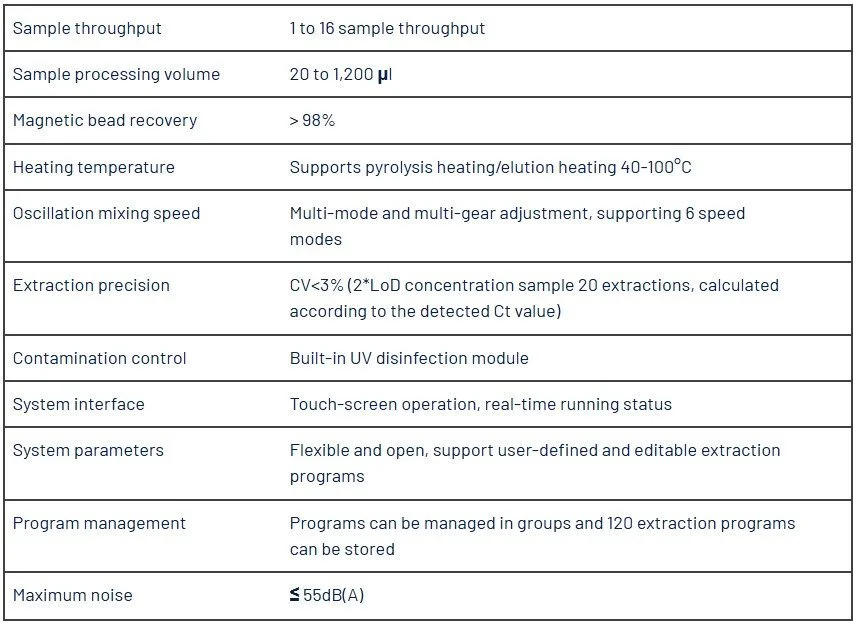

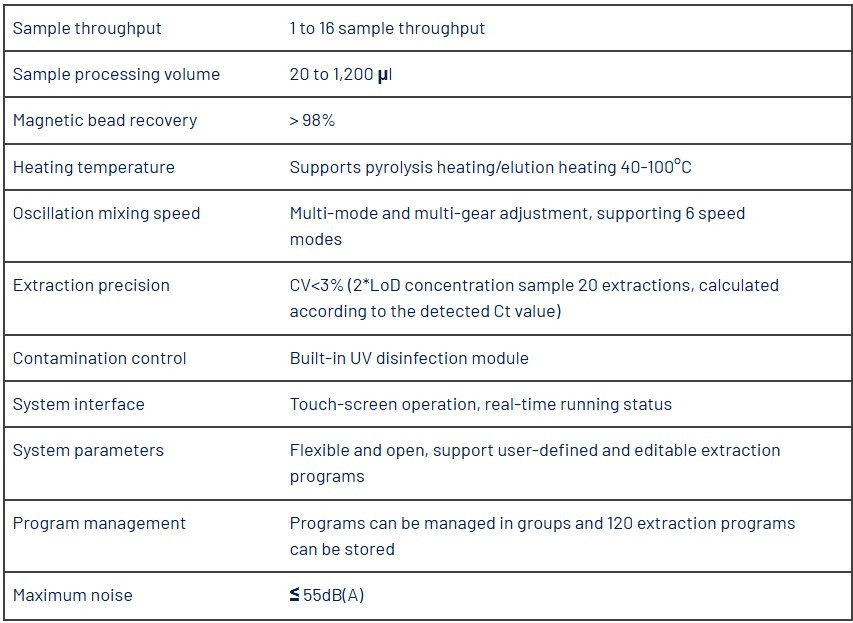

Xtractor™ Instrument Specifications

Table with technical specifications for a laboratory device, including sample throughput, processing volume, magnetic bead recovery, heating temperature, oscillation speed, extraction precision, contamination control, system interface, parameters, program management, and maximum noise level.

Superfast magnetic bead method nucleic acid extraction kit

The kit can complete nucleic acid extraction from respiratory samples in less than 5 minutes. Used with XDive instrument to complete 'sample to result' molecular testing of various types of samples within 30 minutes, including blood, saliva, and feces.

Reagents
